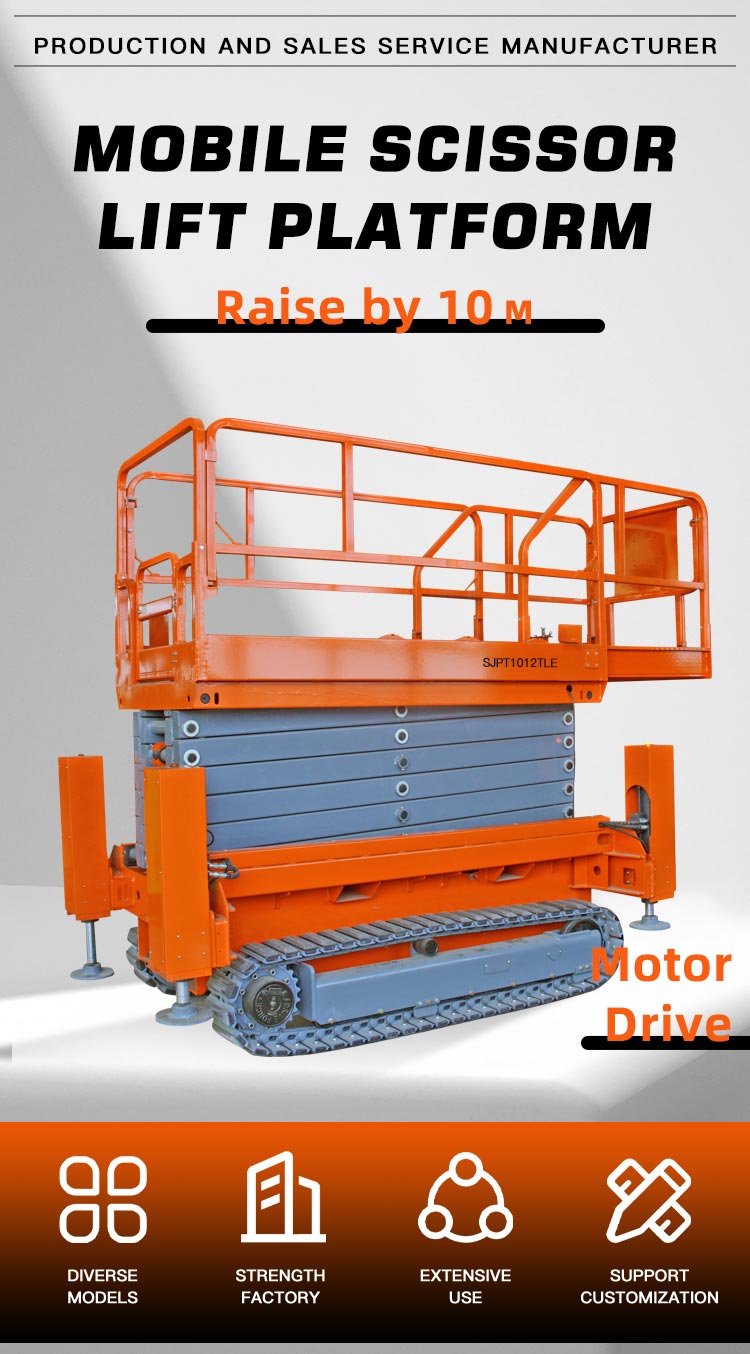

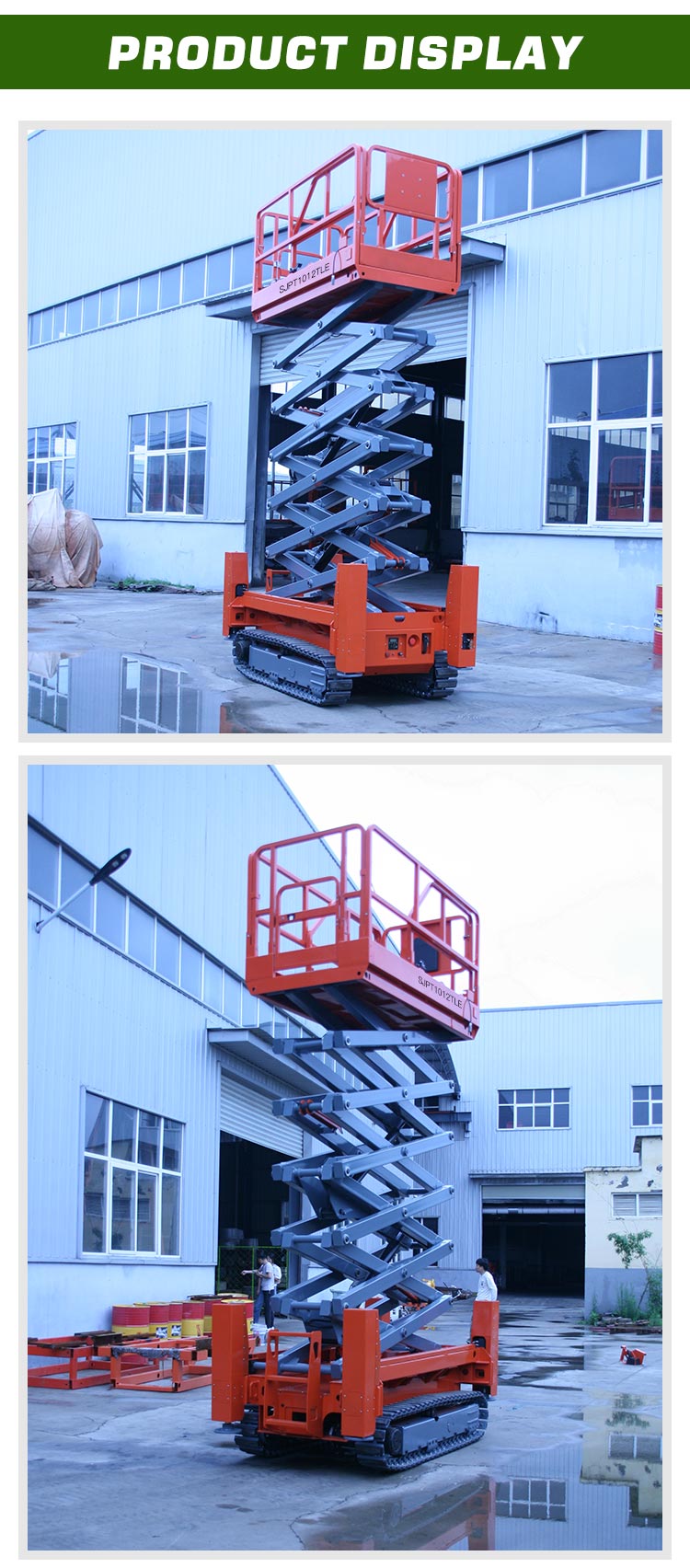

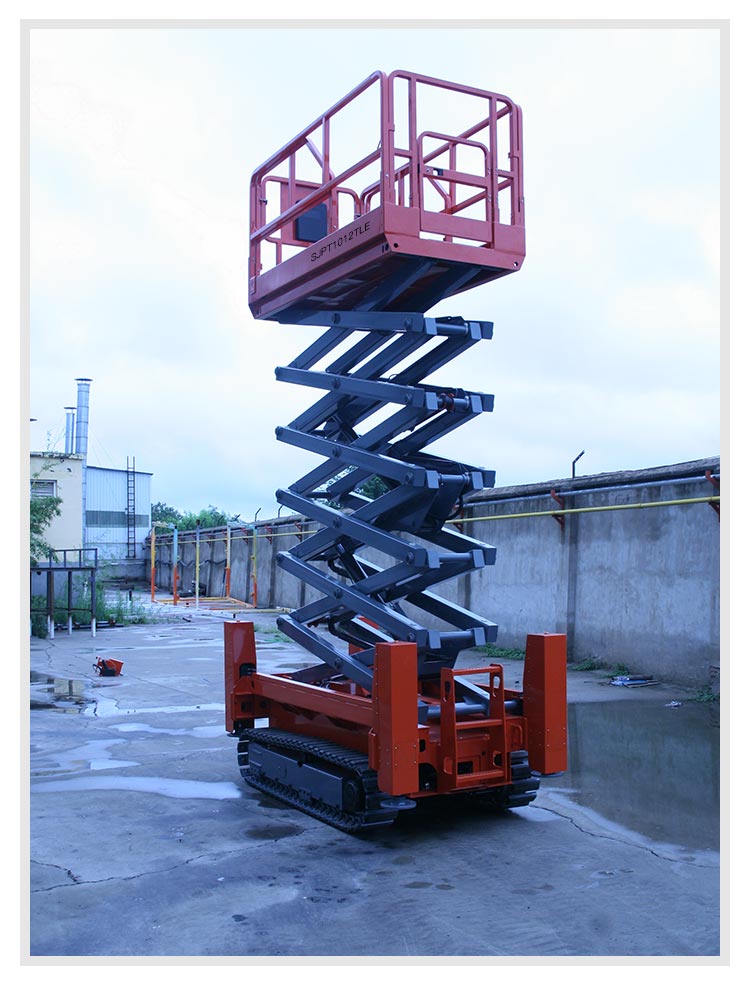

6 Meters Crawler Type Self-walking
1, full height walking, equipped with multiple safety protection devices.
2, DC motor drive, high efficiency, good sensitivity.
3, new energy power, small size, light weight, no pollution
- Information
6 Meters Crawler Type Self-walking
The 6-meter wheel type aerial working platform has a small fuselage, the width of the machine is 0.76 meters, the height of the fence is 1.52 meters, the weight of the machine is 994 kilograms, is not restricted by the lifting weight of the elevator, can freely access the building and passenger stairs and other narrow space, and the transfer of transport is convenient and fast. Its rated load is 230kg, the length of the working platform is 1.4 meters, and it can extend 0.6 meters one-way to quickly reach the working point. It can accommodate 2 people to work at the same time, ensuring safe and efficient operation and comfort. In addition, the 305x100 large rubber tires ensure the obstacle crossing performance, and the walking is more stable, the climbing ability reaches 25%, and the uneven road surface can be easily passed.
In addition to the above performance, this 6-meter wheeled high-altitude working platform also has multiple protection devices such as standard transport forklift hole, platform self-locking door, tilt protection system, emergency descent system, automatic pit protection system and so on. The standard transport forklift hole, improve the transfer efficiency; Tilt protection allows operators to work safely on slopes, reducing the risk of rollover; The automatic pothole protection system limits the walking height during operation to ensure safe construction.
Maximum working height: 7.8m
Maximum platform height: 5.8m
Minimum platform height: 1070mm
Length of working platform: 1400mm
Width of working platform: 760mm
Platform extension size: 600mm
Machine height (guardrail rising) : 2150mm
Machine height (guardrail folding) : 1780mm
Machine length: 1520mm
Machine width: 760mm
Rated load: 230kg
Safe working load of extension platform: 100kg
Maximum number of employees: 2
Driving speed (collection status) : 4Km/h
Driving speed (lifting state) : 0.45Km/h
Ascending/descending time: 36/37s
Maximum climbing capacity: 25%(14°)
Maximum operating Angle: 1.5°/2.5°
Drive/Brake: Dual rear wheels
Walking mode: Traceless rubber tire
Wheel specification: Φ305×100mm
Battery: 2 x 12V100Ah
Charger: 24V15A
Machine weight: 994kg

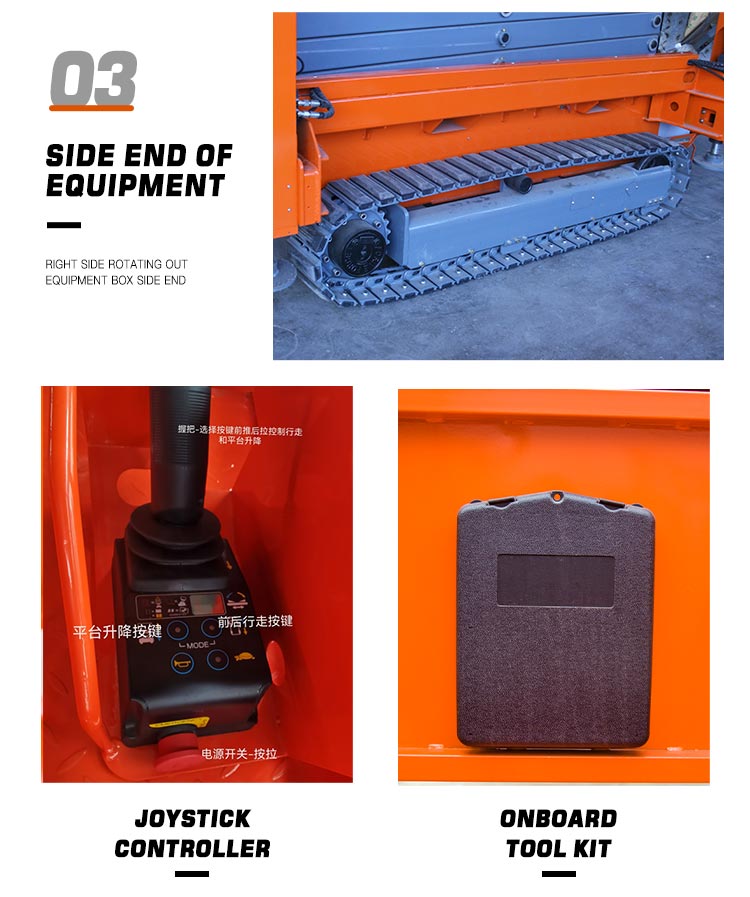

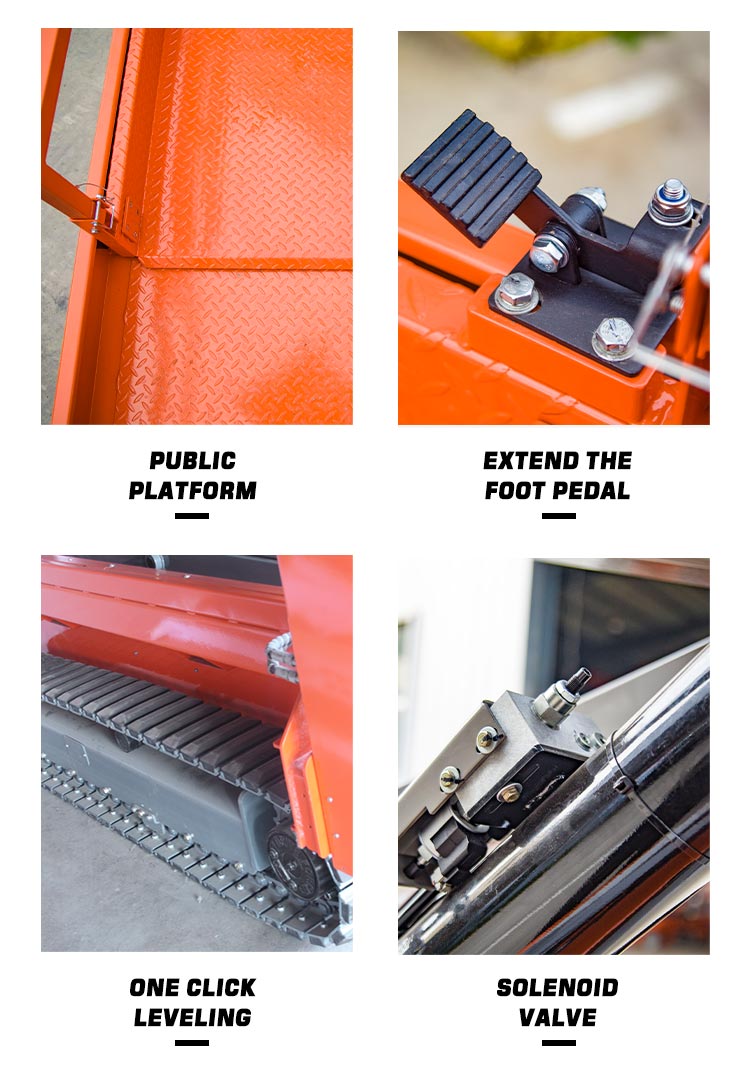

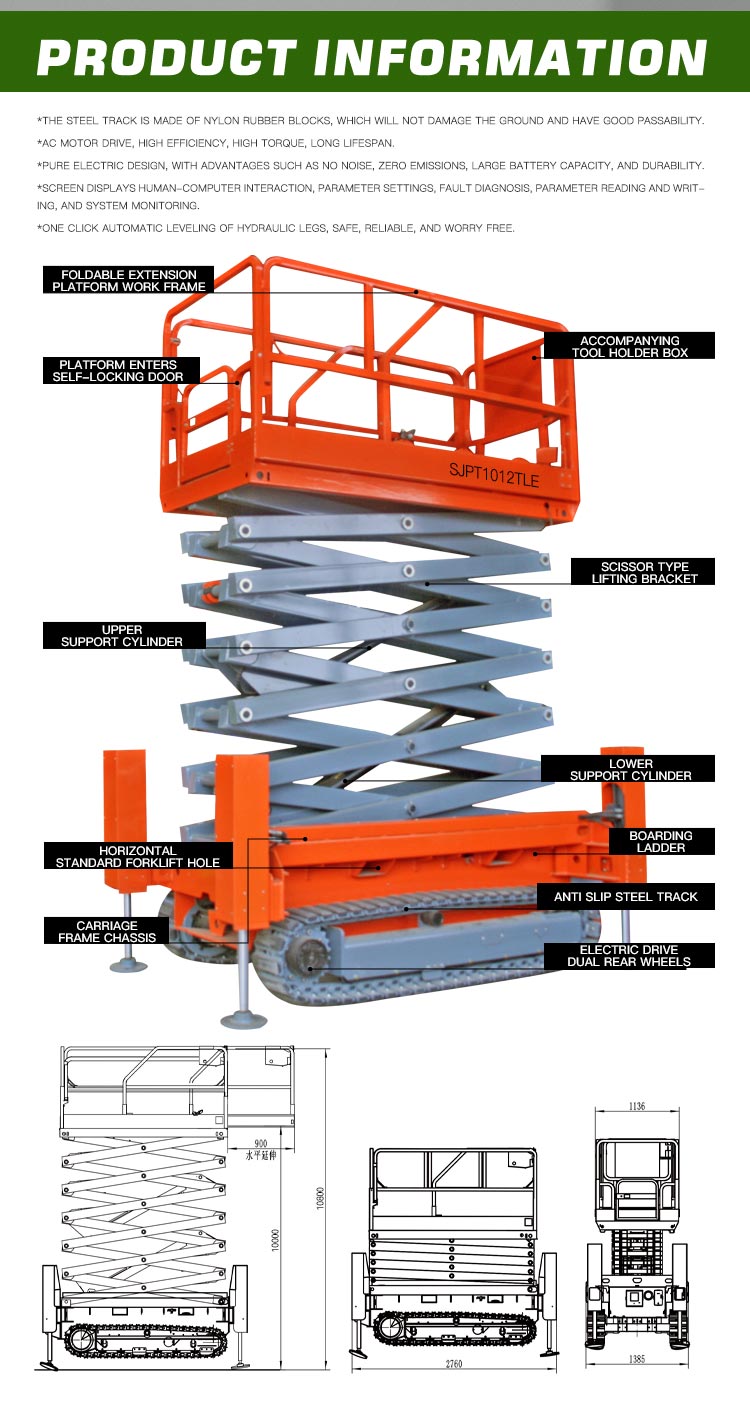

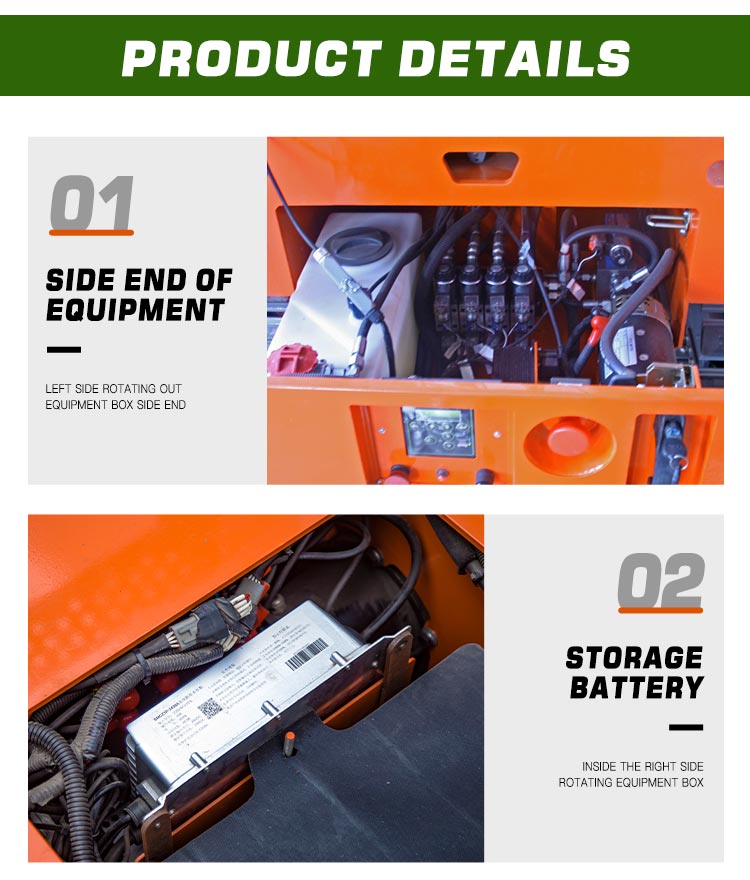

Detail presentation：
