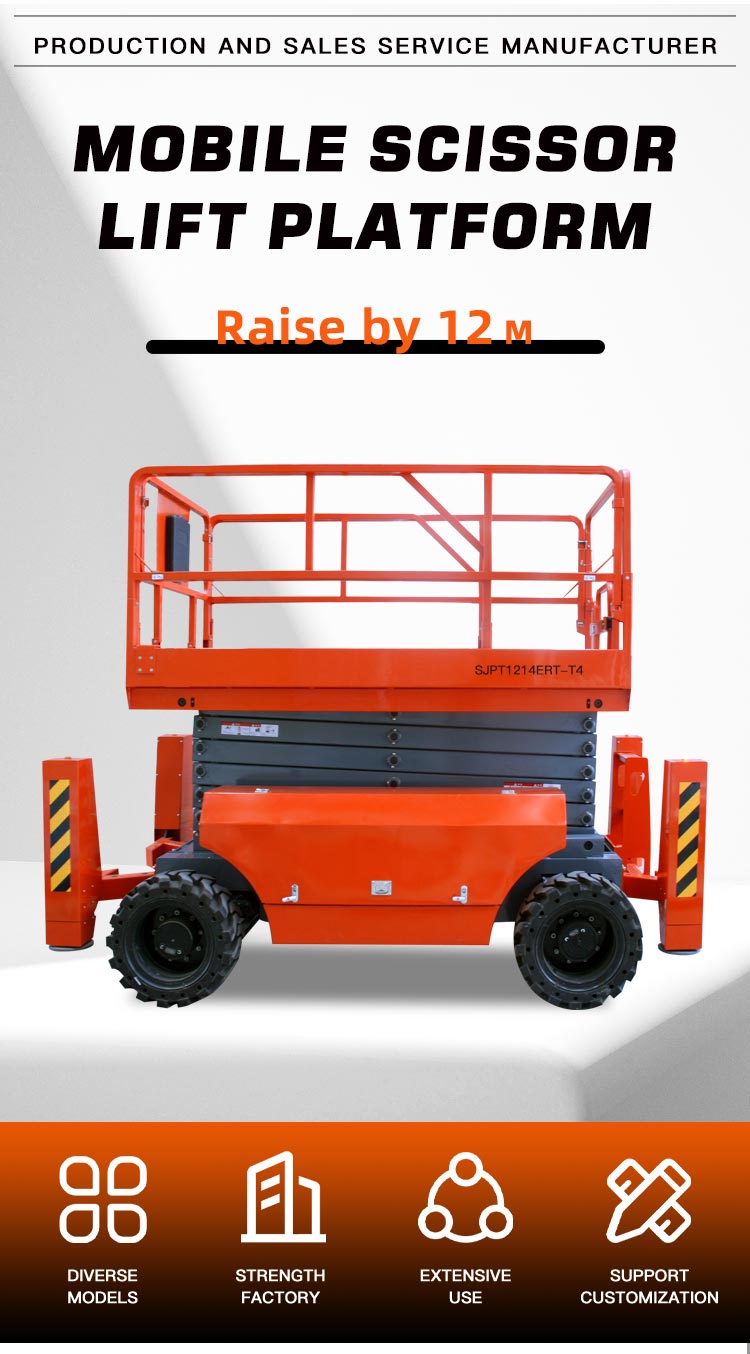

All Terrain Off-road Aerial Work Platform
12 meters cross-country high-altitude working platform using 48V320Ah lithium battery, pure electric design, energy saving and environmental protection, no noise, zero emissions, long endurance, long working cycle, improve work efficiency. Battery life maintenance free, saving costs for users.
- Information
All Terrain Off-road Aerial Work Platform
The 12-meter cross-country high-altitude operation platform has beautiful appearance, superior performance and strong power. All-terrain, all-road driving, unimpeded, suitable for a variety of wild harsh environment.
12m off-road using 26X12-16 off-road solid tires, strong grip, wear resistance, long life, smooth running. And the minimum ground clearance of 0.3 meters, 30% climbing ability, no fear of slopes, one key leveling legs, flexible maneuvering. In the collection state, the driving speed is 6.5 kilometers per hour, and it can carry out long-distance and large-span operations outdoors.
Maximum working height: 14m
Maximum platform height: 12m
Minimum platform height: 1530mm
Length of working platform: 2570mm
Width of working platform: 1380mm
Platform extension size: 1200mm
Machine height (guardrail rising) : 2650mm
Machine height (guardrail folding) : 2100mm
Machine length: 3320mm
Machine width: 1800mm
Rated load: 350kg
Safe working load of extension platform: 113kg
Maximum number of workers: 3
Driving speed (collection status) : 300mm
Driving speed (lifting state) : 6.5Km/h
Rise/fall time: 62/42s
Maximum climbing capacity: 30%
Maximum working Angle:1.5°/3°
Drive/Brake: dual rear-wheels
How to walk: Solid off-road tires
Wheel size: 26×12-16
Battery: 8 x 12V/150Ah
Charger: 48V/30A
Machine weight: 3740kg

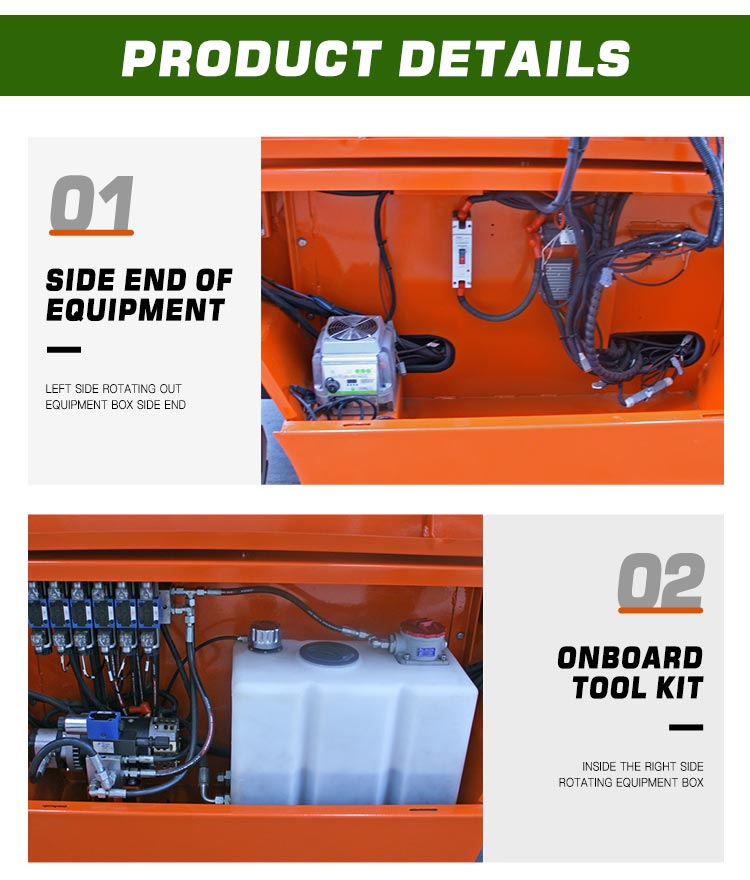

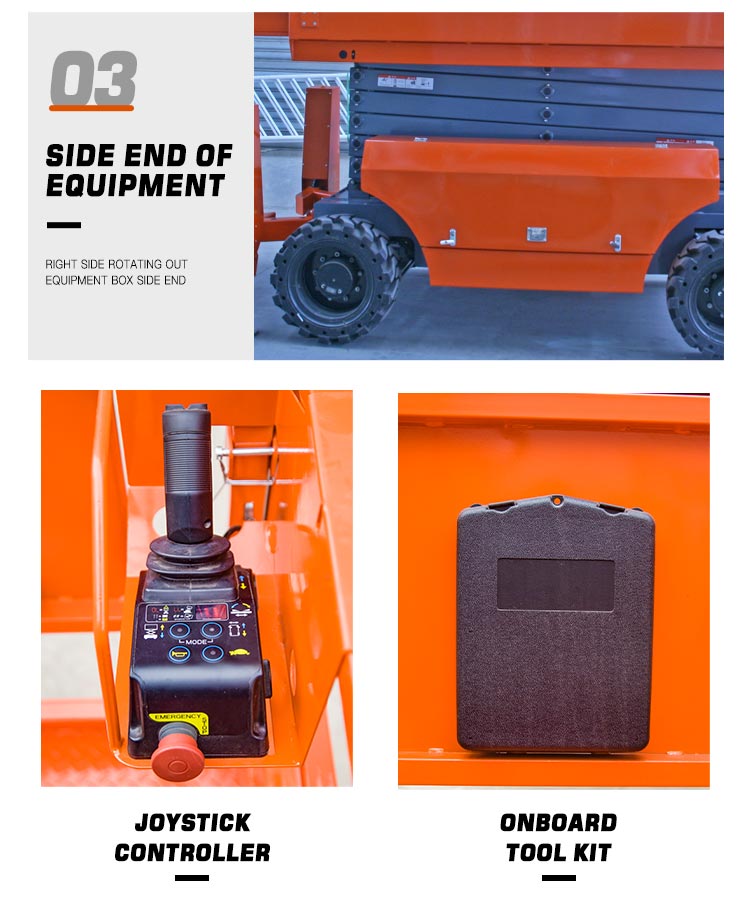

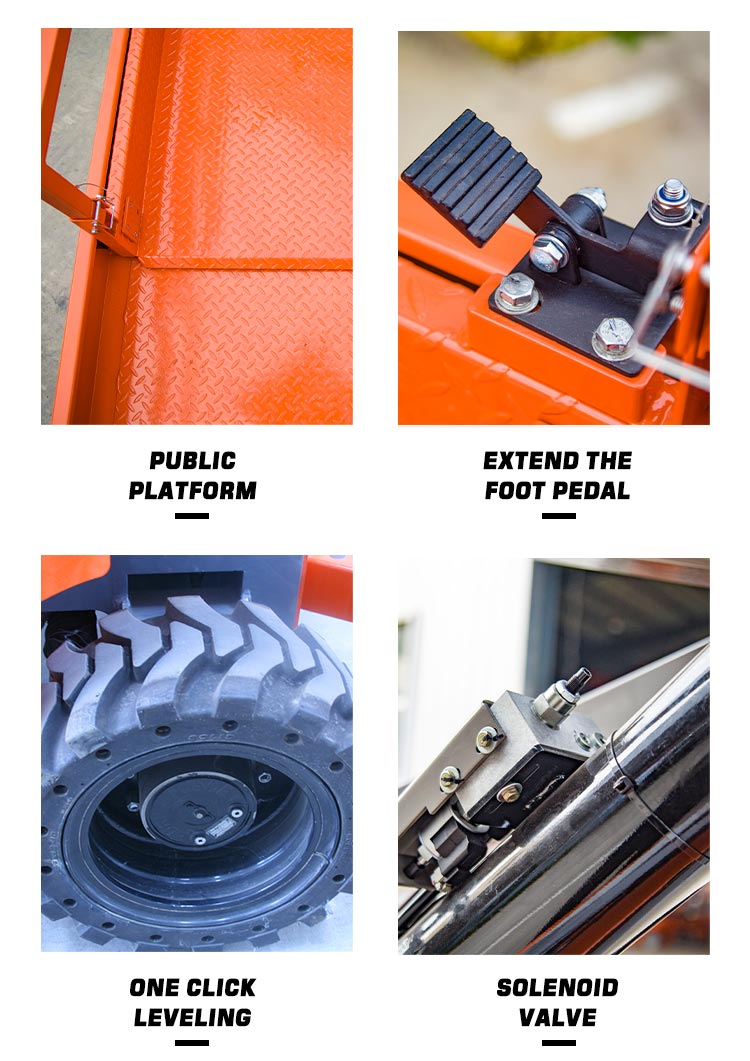

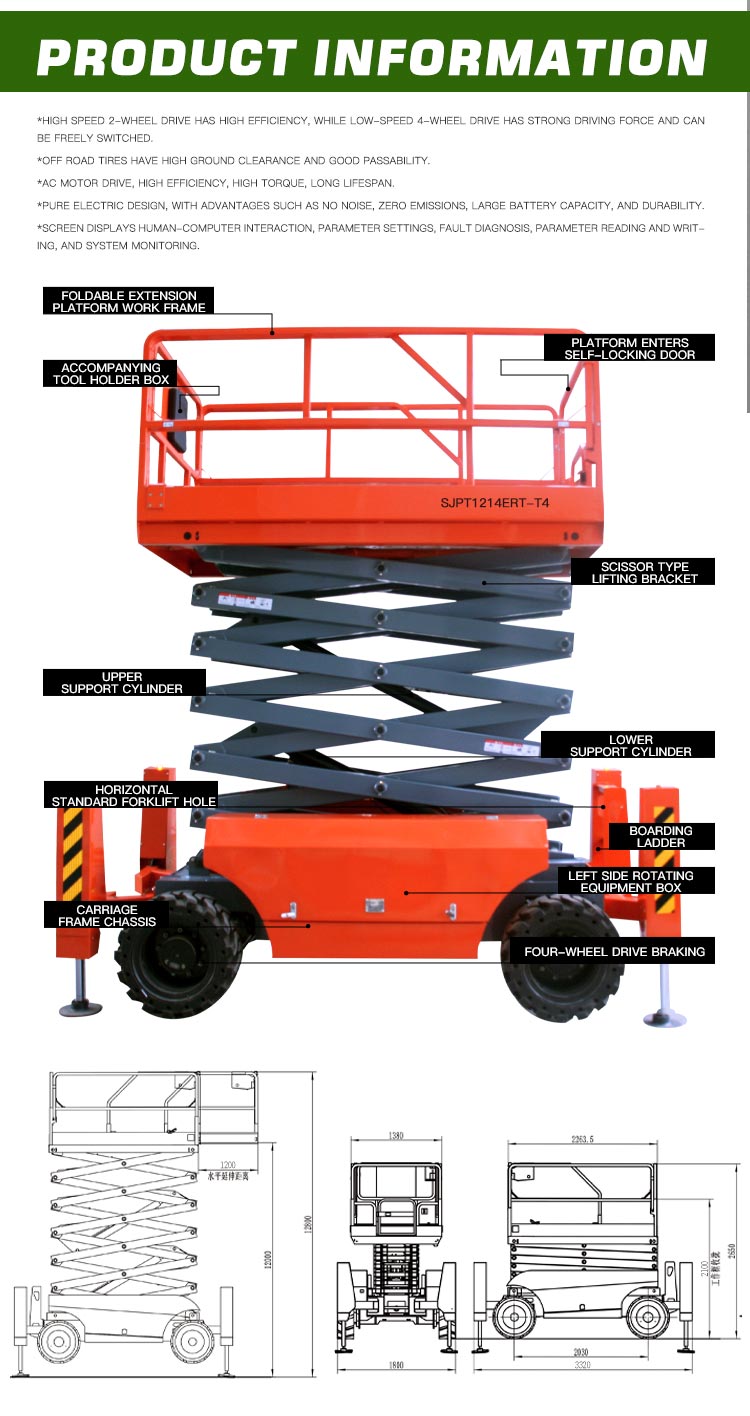

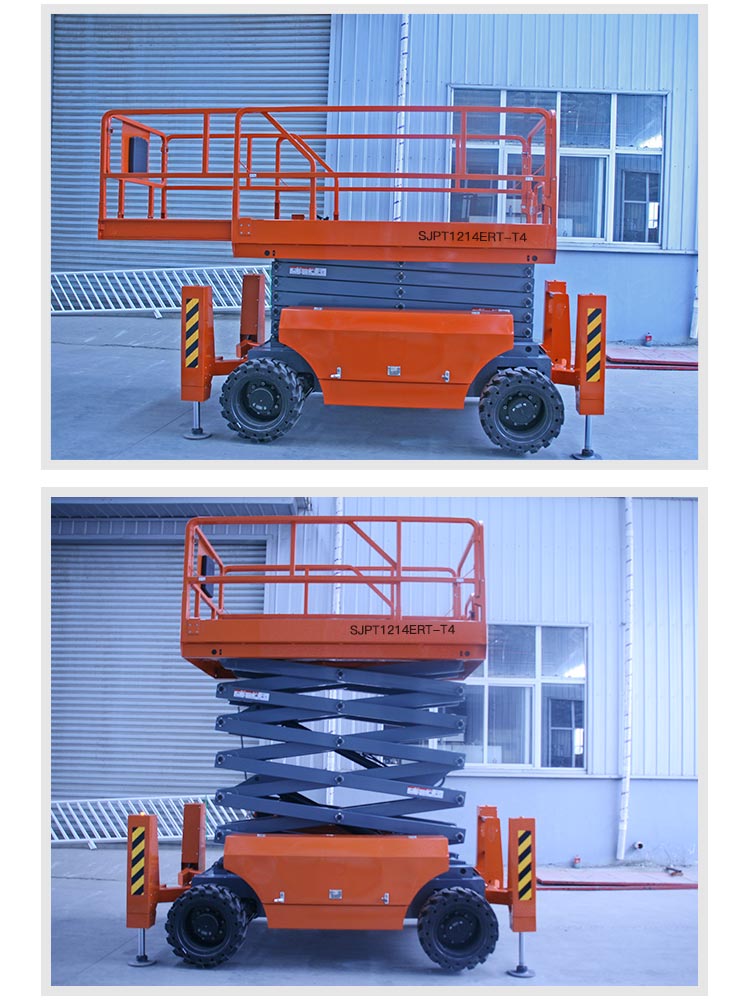

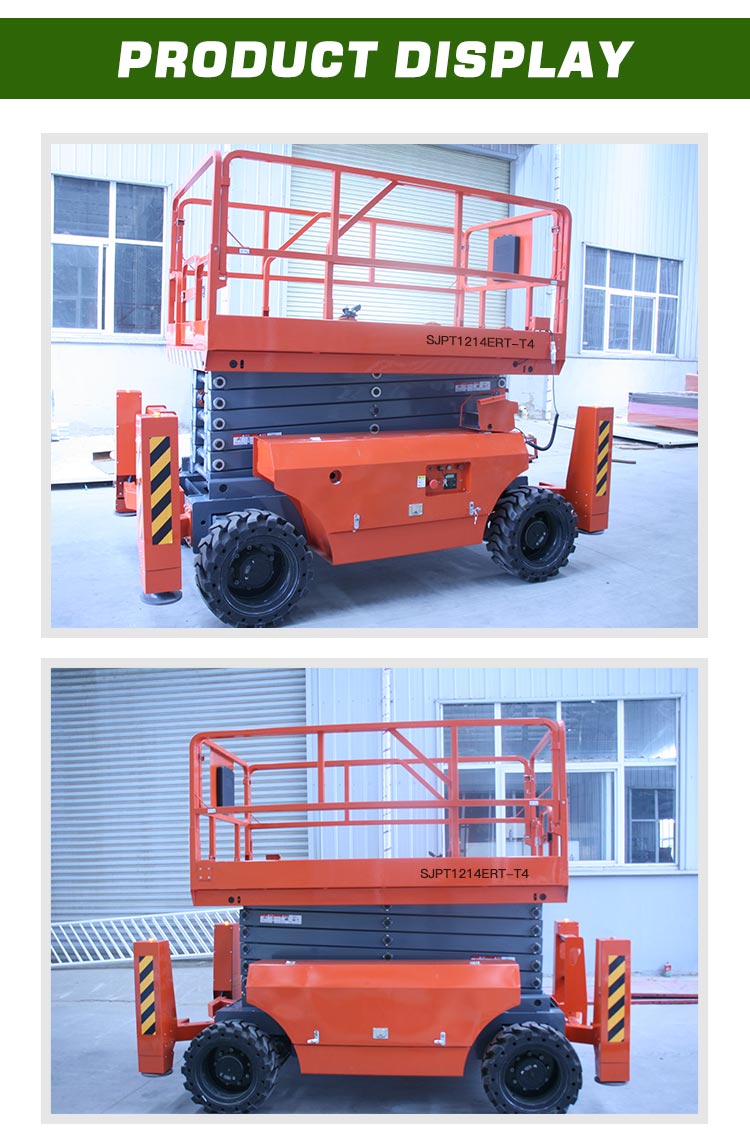

Detail presentation：
