Mini Scissor Lift

1. Enter the mini scissor manned elevator at will, specially designed for the climbing operation of building interlayer;
2. Mini scissors lifting platform to lift rubber track, 360° steering in place.

  • Information

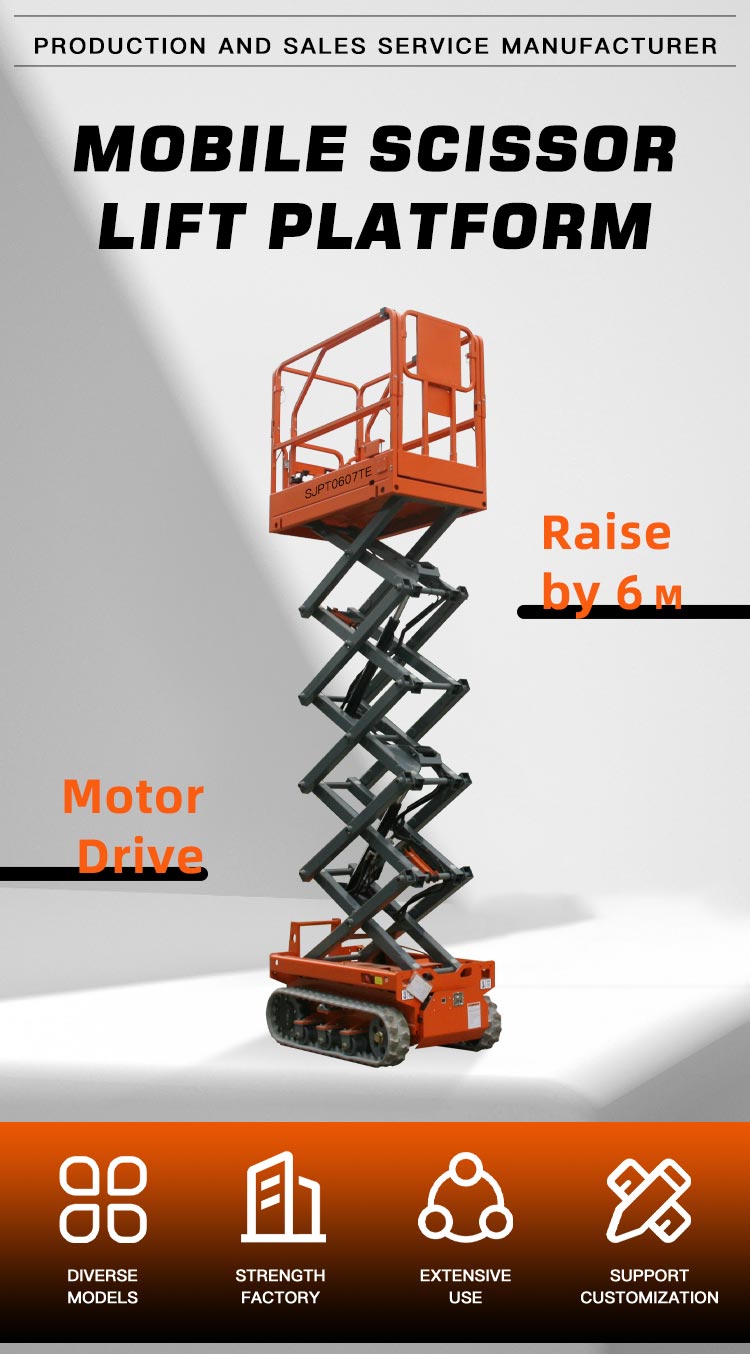

Mini Scissor Lift

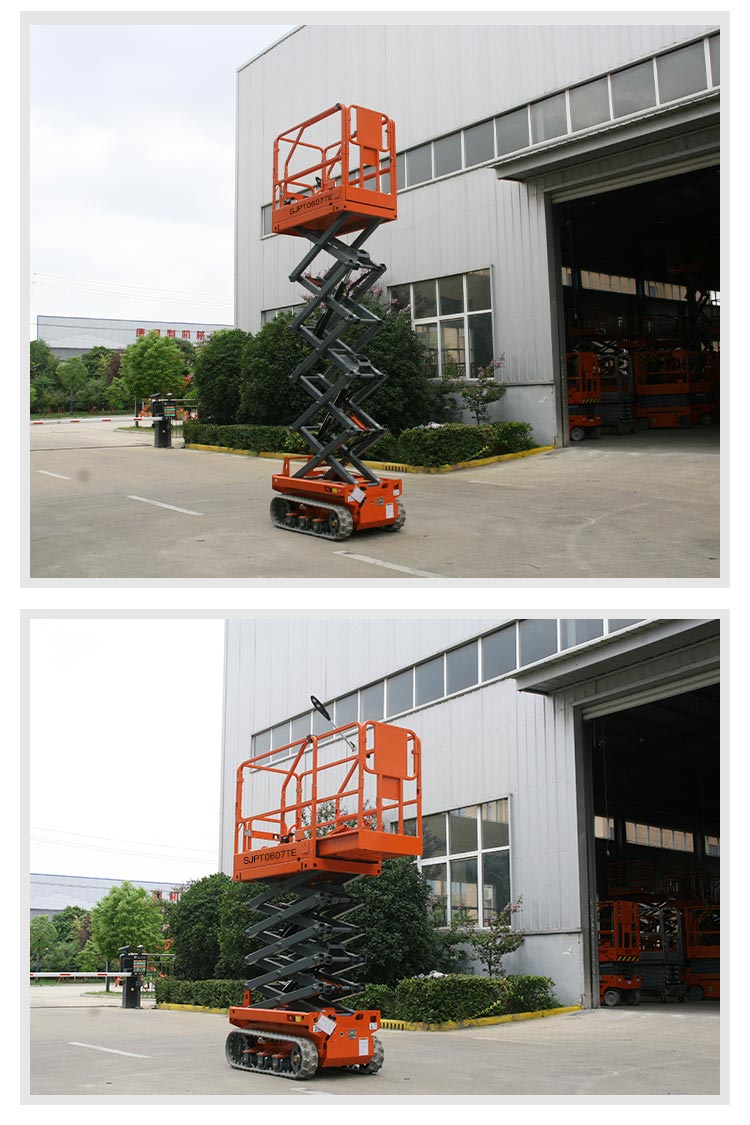

The 6-meter crawler high-altitude working platform has automatic walking function, which can walk at fast and slow speed in different working states. It is flexible in movement and simple in operation. Only one person can operate and continuously complete lifting, forward, backward, turning and other actions when working at high altitude.

The 6-meter track SJPT0607T has a maximum working height of 8 meters, covering the working needs below 7.8 meters. It only takes 36 seconds to reach the maximum working height, improving the working efficiency.

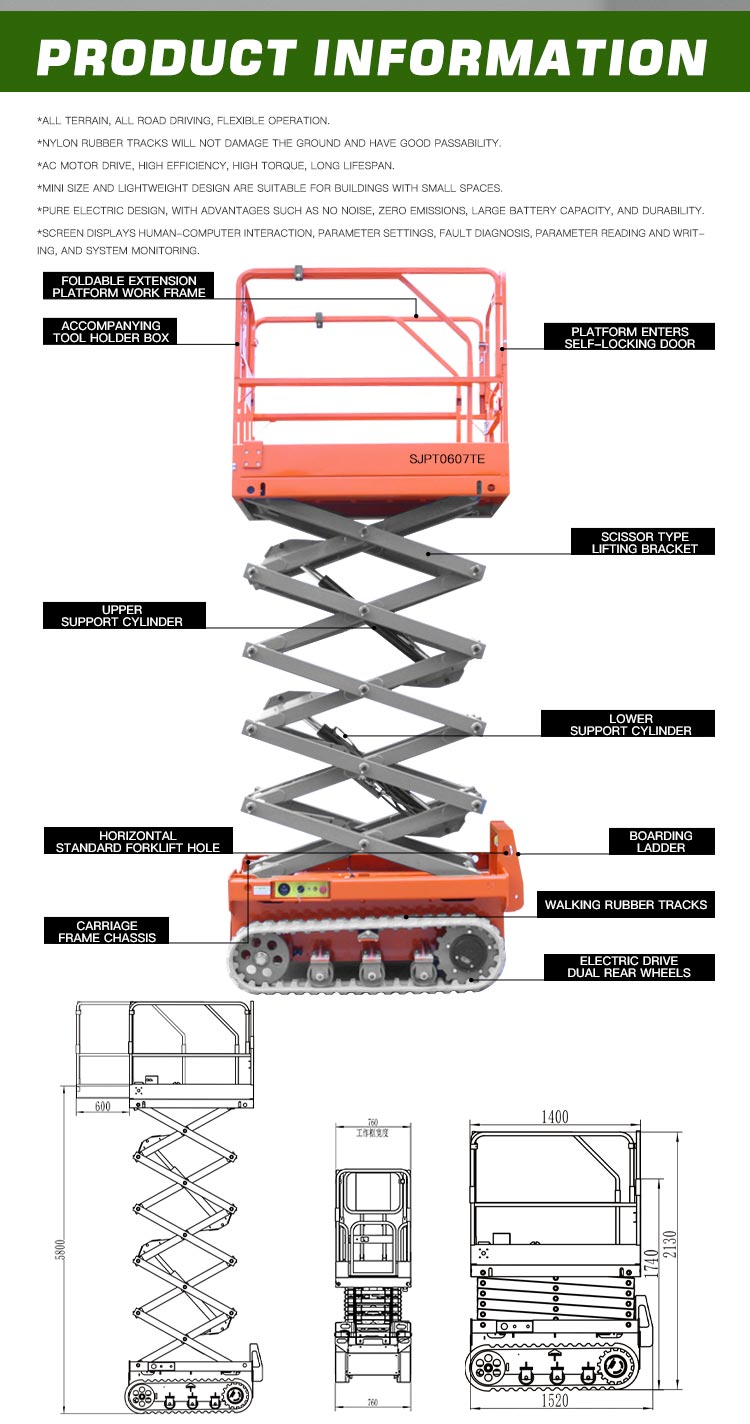

mini lift


Maximum working height: 7.8m

Maximum platform height: 5.8m

Minimum platform height: 1030mm

Working platform length: 1400mm

Working platform width: 760mm

Platform extension size: 600mm

Machine height (guardrail rising) : 2130mm

Machine height (guardrail folding) : 1740mm

Machine length: 1520mm

Machine width: 880mm

Rated load: 230kg

Safe working load of extension platform: 100kg

Maximum number of employees: 2

Driving speed (collection status) : 2.5Km/h

Driving speed (lifting state) : 0.45Km/h

Ascent/descent time: 36/37s

Maximum climbing capacity: 30%(17°)

Maximum operating Angle: 1.5°/2.5°

Drive/brake: Dual rear wheels

Walking mode: Rubber track

Wheel size: 150/72/42

Battery: 2 x 12V120Ah

Charger: 24V18A

Machine weight: 980kg

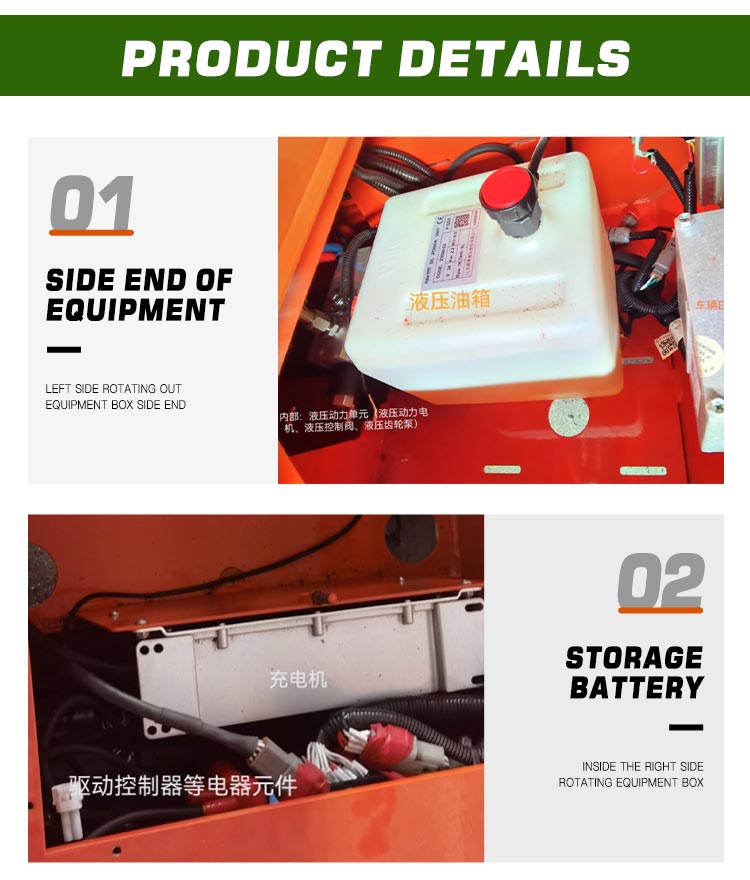

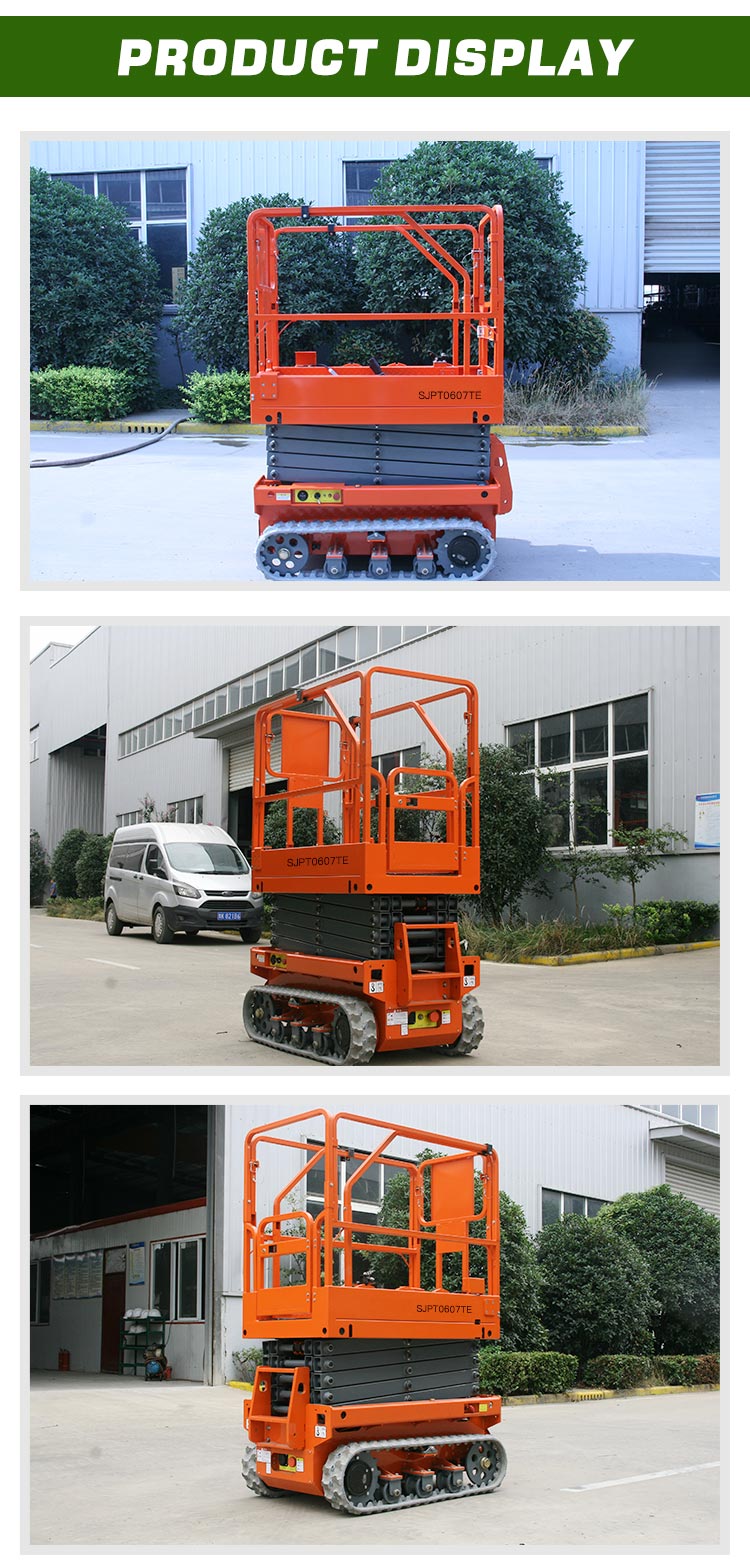

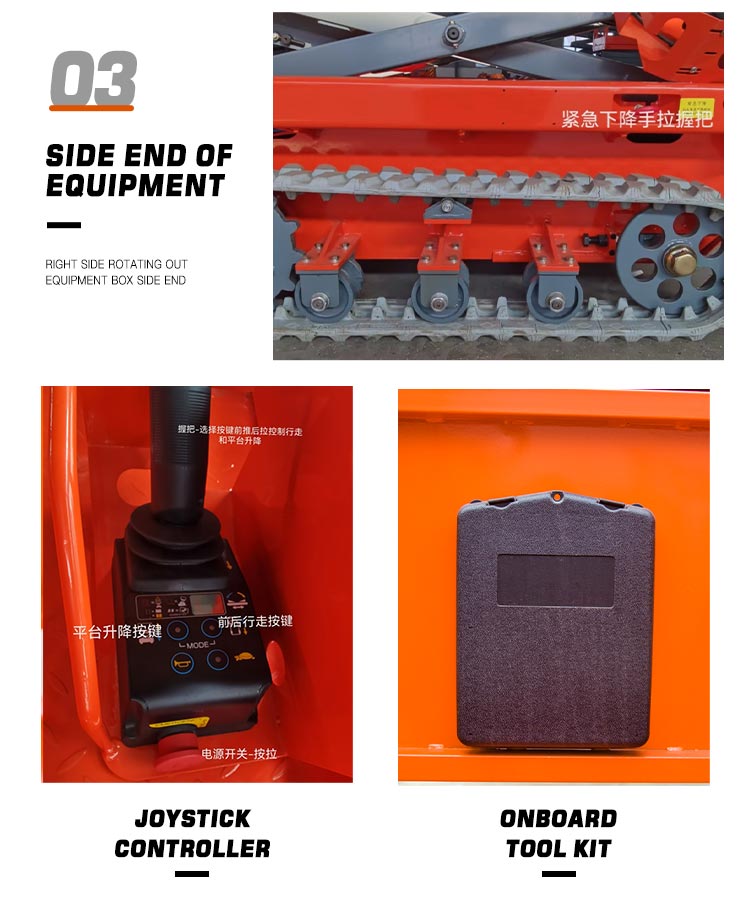

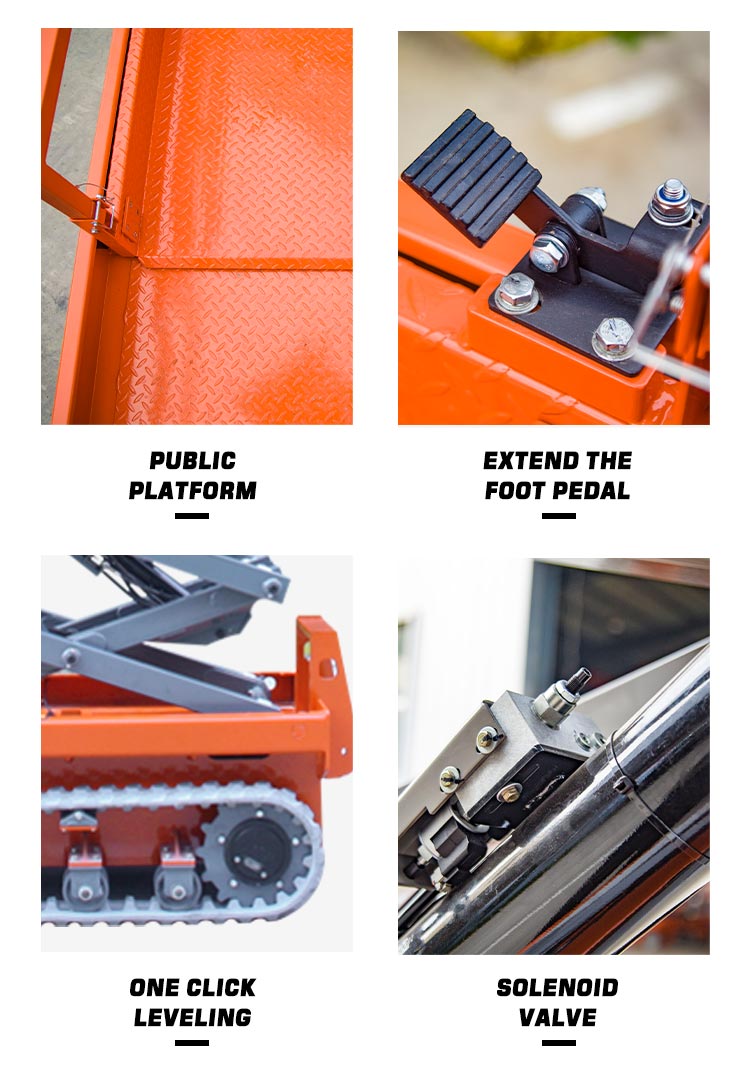

Partial detail display:


scissor lift


mobile aerial platform
